Description

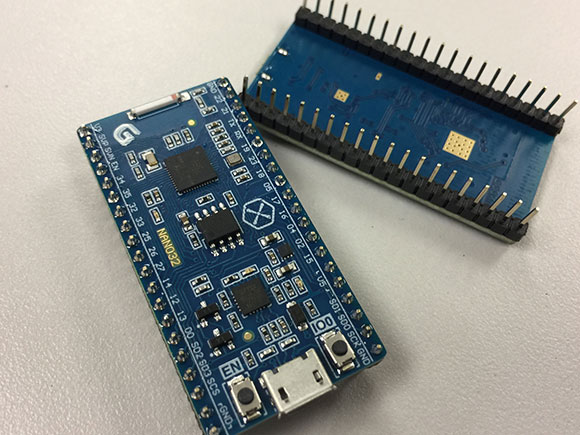

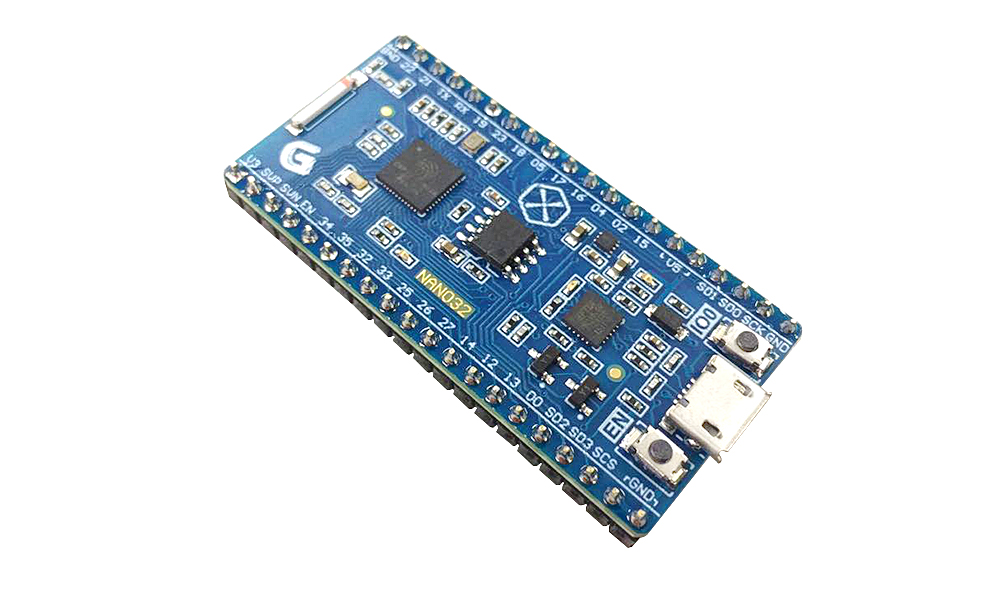

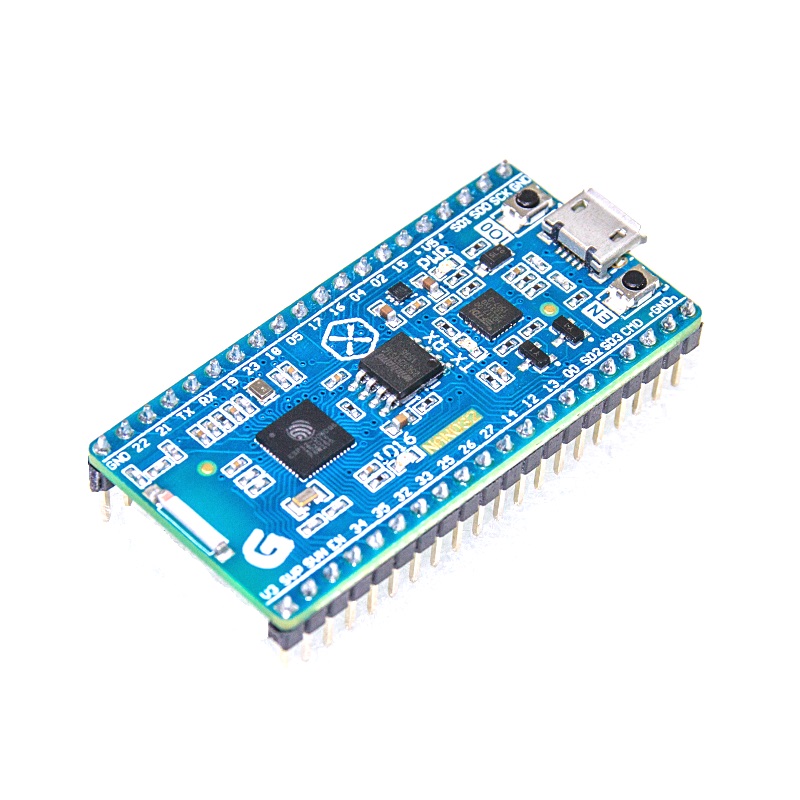

The  IoT Development Board is the first third-party development board that provides another alternative to the eager-beavers community of geeks, makers, hackers and developers interested in the latest Wi-Fi/BT combo ‘wonder’ chip.

It is the latest chipset Systems that combines both Wi-Fi and Bluetooth (BT) capabilities within its dual CPU core and a rich accompaniment of hardware peripherals.

Designed as an ultra-low power chip using TSMC 40nm technology, it employs a customized CPU design based on the Cadence® Tensilica® Xtensa® Dual-Core 32-bit LX6 600 DMIPS.

Feature:

• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
• 4MB Flash (32MBit)
• ESP32 SoC (System on Chip) with WiFi and Bluetooth BLE
• Auto-reset for an automatic flash of the new program
• 40MHz Crystal for CPU, 32.768KHz for RTC and low power operation
• Integrated 520 KB SRAM
• Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
• FTDI231 for the USB to Serial communication
• 2.2V to 3.6V operating voltage
• Onboard 3.3V, 0.5A LDO tested to work up to 1A
• 2.5dBi Peak Gain, 0.5dBi average gain antenna
• Integrated dual mode Bluetooth (classic and BLE)
• -40°C to +125°C operating temperature
